How to design for 3D printing

Welcome to our comprehensive design guide, your indispensable resource for ensuring that your designs align with the guidelines governing our cutting-edge 3D printing Service. Whether you are a seasoned designer or new to the world of 3D printing, these 3D printing design tips have been meticulously crafted to empower you with the knowledge and insights needed to create exceptional parts using any of the materials and technologies we offer.

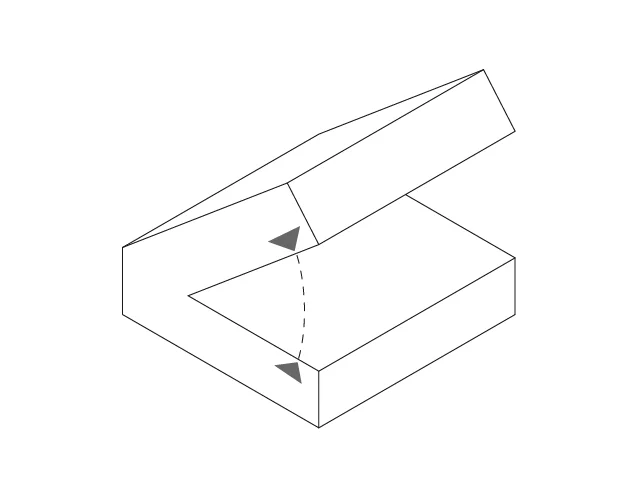

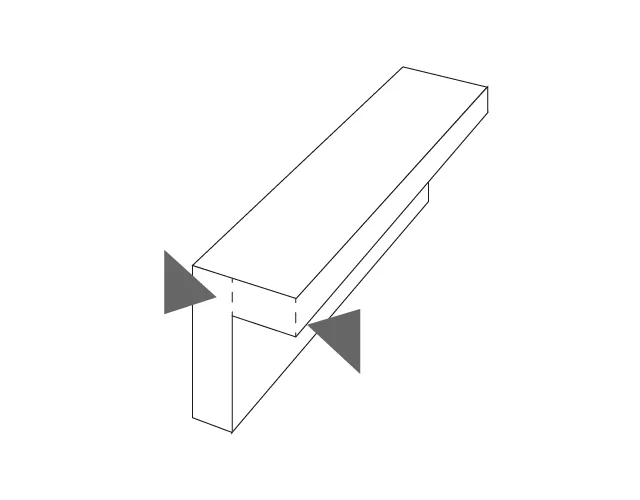

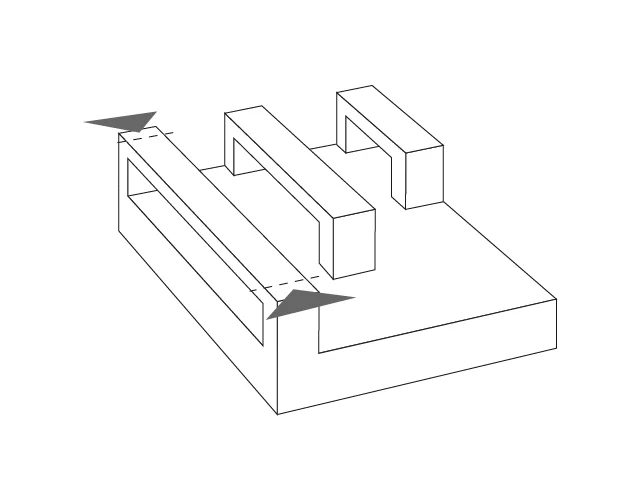

Key design rules

Design guide illustrating minimum wall thickness requirements for structural integrity in 3D printed parts

Wall thickness

  • Min: 1mm
  • Min: 1mm

Wall thickness influences printability and material properties: below 1.0mm may not print and risks damage; up to ~3mm has flexibility, and beyond this will be stiff. Thick walls may be hollowed out to avoid deformation during manufacturing, leaving the internal spaces full of unfused PA12 Nylon powder.

Illustration of part size limitations for 3D printing within build volume constraints

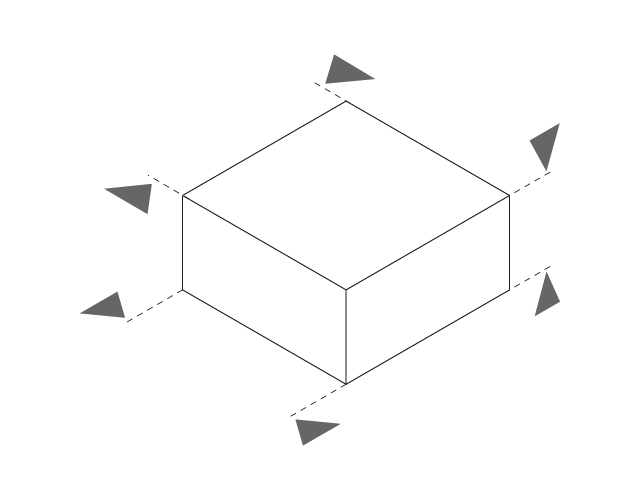

Part size

  • Min: 8mm³
  • Max: 335x285x445 mm
  • Min: 8mm³
  • Max: 335x285x445 mm

Parts exceeding or falling below the specified limits are incompatible with our equipment and cannot be produced effectively. We can offer splitting services if parts are too large

Tip for minimum line height and width when adding embossed features to 3D printed parts

Embossed detail

  • Min: 1mm
  • Min: 1mm

Embossed details are shallow raised features on your model, such as texture, patterns and text. Details smaller than 0.8mm in thickness may not be visible on your part.

Best practice guidance for minimum depth and width of engraved text or features on 3D printed surfaces

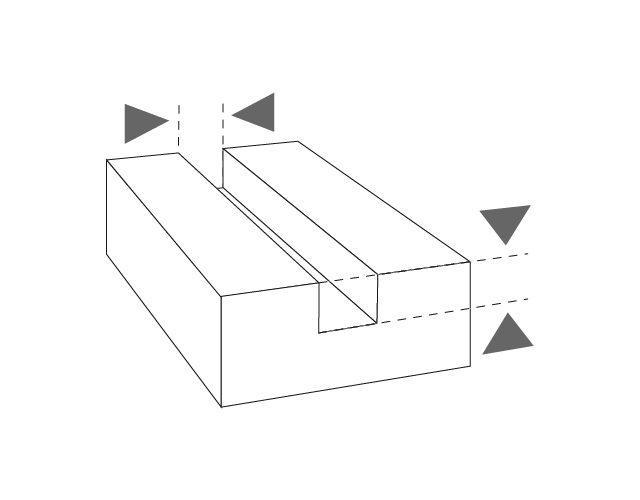

Engraved detail

  • Min: 0.4mm
  • Min: 0.4mm

Engraved details are imprinted or recessed features on your model. Details must be at least 0.4mm in width and depth for clarity.

Diagram showing recommended diameter and tolerances for through holes in powder bed fusion 3D printing

Through holes

  • Min: ø1.5mm
  • Depth: ø+1mm per 10mm depth
  • Min: ø1.5mm
  • Depth: ø+1mm per 10mm depth

To prevent blockages a minimum diameter of 1.5mm is recommended, with an increase of 1mm in diameter for every 10mm depth. (e.g., a 30mm hole should be at least 4.5mm wide)

Guideline showing depth-to-diameter ratio limitations for blind holes in powder-based 3D printing processes

Blind holes

  • Min: ø2mm
  • Depth: ø+2mm per 10mm depth
  • Min: ø2mm
  • Depth: ø+2mm per 10mm depth

Blind holes are more susceptible to blockages than through holes. A minimum diameter of 2mm is recommended, with an increase of 2mm in diameter for every 10mm depth.

Cross-section diagram illustrating trapped powder issues in enclosed cavities in 3D printed components

Cavities

  • Opening Diameter: 50mm
  • Opening Diameter: 50mm

When designing hollow parts, be sure to use large openings and avoid non-line-of-sight cavities to prevent trapping unsintered material inside.

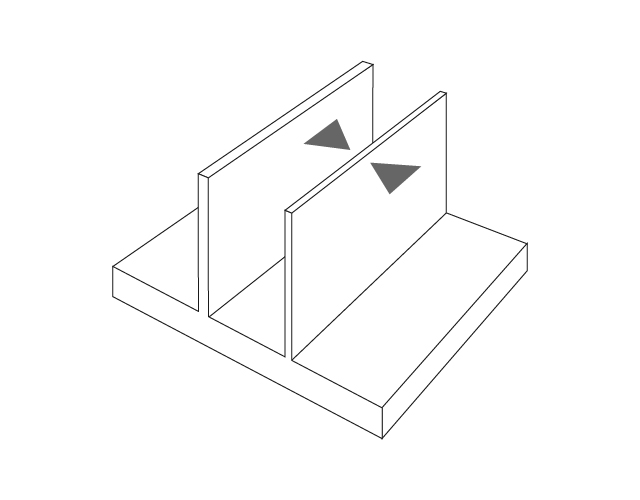

Design diagram showing built-in clearances for moving parts printed as assemblies in a single 3D print job

Integrated clearance

  • Min: 0.5mm
  • Note: Contact us for per project advice
  • Min: 0.5mm
  • Note: Contact us for per project advice

Pre-assembled components such as hinges or interlocking parts may fuse if too close together, especially if they have thick walls.

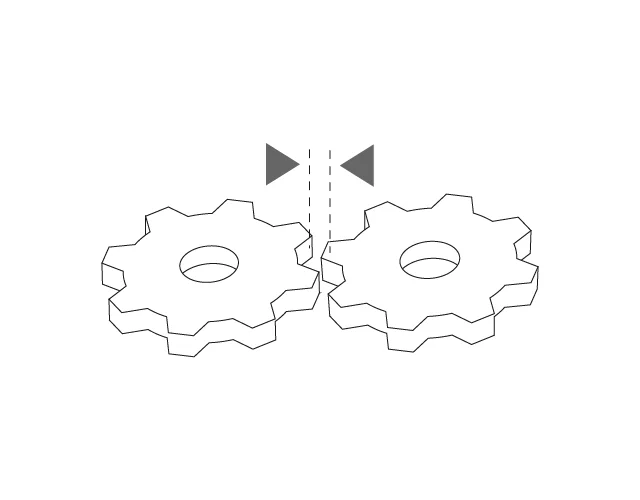

Diagram showing minimum clearance required between 3D printed parts for successful post-processing and assembly

Assembly clearance

  • Free fit: 0.2mm
  • Close fit: 0.1mm
  • Free fit: 0.2mm
  • Close fit: 0.1mm

For parts intended to be assembled post-printing. A free fit offers more space for easy assembly and movement, while a close fit is tighter and may require some force or adjustments to assemble.

Recommended minimum text size for legible embossed or engraved features on 3D printed surfaces

Text size

  • Min: 0.8mm
  • Min: 0.8mm

It’s important to consider the distance between engraved letters as well as the line weight of embossed text. Any material thickness below 0.8mm may not be visible.

Design guideline showing large flat surfaces in 3D printed parts, which may warp without proper support or geometry optimisation

Large flat parts

  • Max: ~A5 paper size
  • Max: ~A5 paper size

Avoid designing large flat components as they’re particularly susceptible to deformation or warping. Adding support ribs often exacerbates deformation, so it’s best to steer clear of large flat surfaces if possible

Illustration of the minimum printable wire or rod diameter for 3D printing using SLS or MJF technologies

Wire diameter

  • Min: 1.2mm - 3mm
  • Min: 1.2mm - 3mm

It’s advisable to maintain a minimum thickness of 1.2mm for wires up to 7mm long, increase to 2mm for lengths up to 30mm, and use at least 3mm thickness for anything longer.

Design rule for maintaining minimum edge wall thickness to ensure print reliability and part strength

Edge thickness

  • Min: 1mm
  • Min: 1mm

To prevent damage during manufacturing, avoid designs with edges that taper to zero thickness. Thin edges are prone to damage; it’s recommended to blunt these tapered edges to a minimum thickness of 1mm.

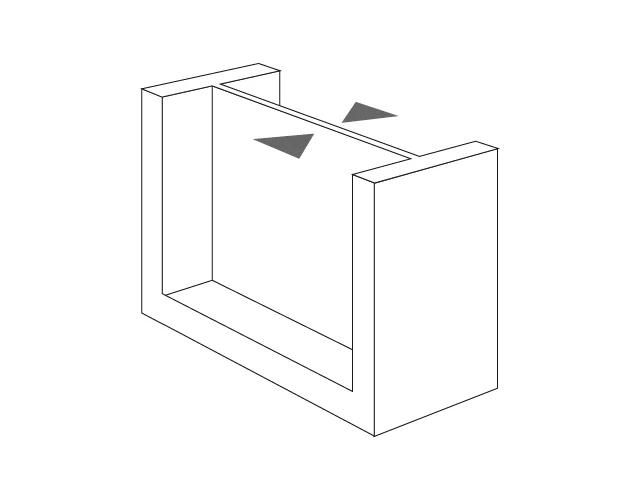

Wall thickness

  • Min: 1mm
Design guide illustrating minimum wall thickness requirements for structural integrity in 3D printed parts

Wall thickness influences printability and material properties: below 1.0mm may not print and risks damage; up to ~3mm has flexibility, and beyond this will be stiff. Thick walls may be hollowed out to avoid deformation during manufacturing, leaving the internal spaces full of unfused PA12 Nylon powder.

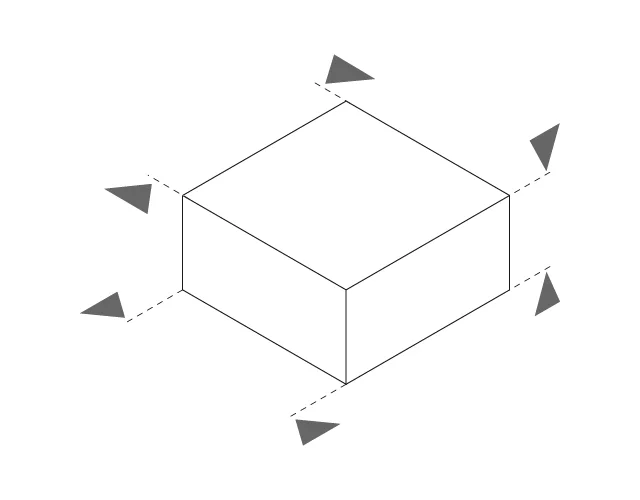

Part size

  • Min: 8mm³
  • Max: 335x285x445 mm
Illustration of part size limitations for 3D printing within build volume constraints

Parts exceeding or falling below the specified limits are incompatible with our equipment and cannot be produced effectively. We can offer splitting services if parts are too large

Embossed detail

  • Min: 1mm
Tip for minimum line height and width when adding embossed features to 3D printed parts

Embossed details are shallow raised features on your model, such as texture, patterns and text. Details smaller than 0.8mm in thickness may not be visible on your part.

Engraved detail

  • Min: 0.4mm
Best practice guidance for minimum depth and width of engraved text or features on 3D printed surfaces

Engraved details are imprinted or recessed features on your model. Details must be at least 0.4mm in width and depth for clarity.

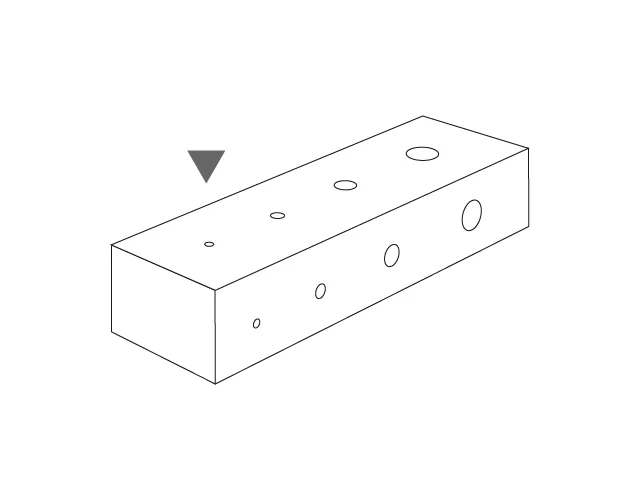

Through holes

  • Min: ø1.5mm
  • Depth: ø+1mm per 10mm depth
Diagram showing recommended diameter and tolerances for through holes in powder bed fusion 3D printing

To prevent blockages a minimum diameter of 1.5mm is recommended, with an increase of 1mm in diameter for every 10mm depth. (e.g., a 30mm hole should be at least 4.5mm wide)

Blind holes

  • Min: ø2mm
  • Depth: ø+2mm per 10mm depth
Guideline showing depth-to-diameter ratio limitations for blind holes in powder-based 3D printing processes

Blind holes are more susceptible to blockages than through holes. A minimum diameter of 2mm is recommended, with an increase of 2mm in diameter for every 10mm depth.

Cavities

  • Opening Diameter: 50mm
Cross-section diagram illustrating trapped powder issues in enclosed cavities in 3D printed components

When designing hollow parts, be sure to use large openings and avoid non-line-of-sight cavities to prevent trapping unsintered material inside.

Integrated clearance

  • Min: 0.5mm
  • Note: Contact us for per project advice
Design diagram showing built-in clearances for moving parts printed as assemblies in a single 3D print job

Pre-assembled components such as hinges or interlocking parts may fuse if too close together, especially if they have thick walls.

Assembly clearance

  • Free fit: 0.2mm
  • Close fit: 0.1mm
Diagram showing minimum clearance required between 3D printed parts for successful post-processing and assembly

For parts intended to be assembled post-printing. A free fit offers more space for easy assembly and movement, while a close fit is tighter and may require some force or adjustments to assemble.

Text size

  • Min: 0.8mm
Recommended minimum text size for legible embossed or engraved features on 3D printed surfaces

It’s important to consider the distance between engraved letters as well as the line weight of embossed text. Any material thickness below 0.8mm may not be visible.

Large flat parts

  • Max: ~A5 paper size
Design guideline showing large flat surfaces in 3D printed parts, which may warp without proper support or geometry optimisation

Avoid designing large flat components as they’re particularly susceptible to deformation or warping. Adding support ribs often exacerbates deformation, so it’s best to steer clear of large flat surfaces if possible

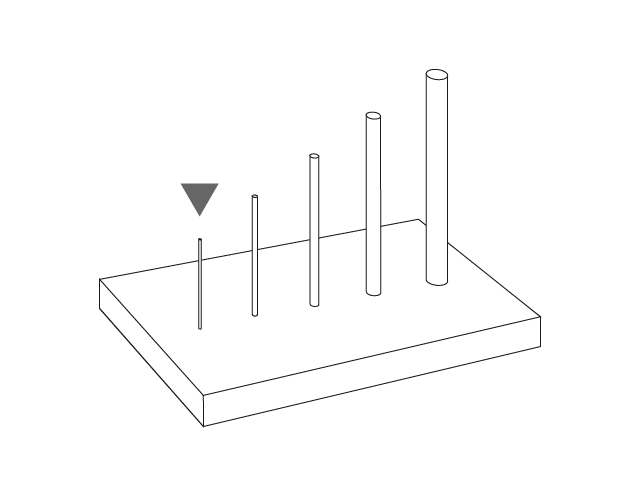

Wire diameter

  • Min: 1.2mm - 3mm
Illustration of the minimum printable wire or rod diameter for 3D printing using SLS or MJF technologies

It’s advisable to maintain a minimum thickness of 1.2mm for wires up to 7mm long, increase to 2mm for lengths up to 30mm, and use at least 3mm thickness for anything longer.

Edge thickness

  • Min: 1mm
Design rule for maintaining minimum edge wall thickness to ensure print reliability and part strength

To prevent damage during manufacturing, avoid designs with edges that taper to zero thickness. Thin edges are prone to damage; it’s recommended to blunt these tapered edges to a minimum thickness of 1mm.

Follow this design for 3D printing guide to ensure top quality components from our additive manufacturing service

Design guide notes

While it’s worth noting that some designs with unconventional geometries may still achieve successful prints, adhering to this guide is your best pathway to consistently achieving outstanding results. Whether you’re seeking precision, durability, or aesthetic perfection, this guide will serve as your trusted companion on your journey to mastering the art of designing for 3D printing.

We understand that creativity knows no bounds, and sometimes you may have designs that fall outside these guidelines. In such cases, we may still attempt to print your project; however, please be aware that deviations from the recommended parameters may result in suboptimal outcomes, and we cannot guarantee the quality or functionality of such prints. Therefore, it’s important to carefully review and follow our design guidelines to maximize the chances of success.

Additionally, please note that if your design does not adhere to these guidelines and we proceed with the printing, we will not be able to offer refunds for orders that do not meet the specified criteria. Our aim is to provide you with the best possible 3D printing experience, and we encourage you to utilize these 3D Printing Design tips to make informed decisions about your projects.
